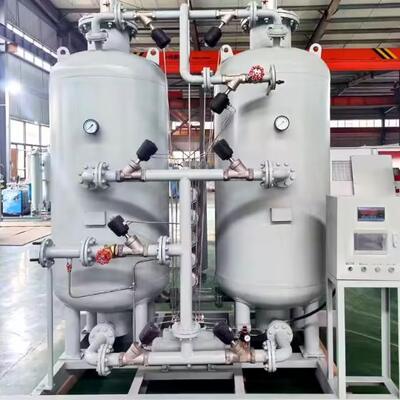

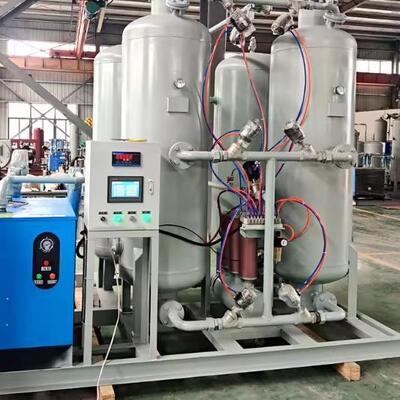

Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure

Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure
Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure

큰 이미지 :  Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure

제품 상세 정보:
원래 장소: 중국
브랜드 이름: GNEE
인증: SGS
결제 및 배송 조건:
최소 주문 수량: ≥1sets
포장 세부 사항: 나무 상자 / 외부 쉘 포장
배달 시간: 운송 시간 : Est. 17-24 일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
접촉

Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure

설명
설명: PSA 질소 발생기 전원공급장치: 220V/380V
스타일: 컨테이너 리즈 질소 출력: 108Nm3/hr
작동 온도: 5 ° C -50 ° C 기구: 포함됨
이슬점: -40 6 -60 ℃ 배출구 직경: DN25
모바일 방식: 바닥 서 제품 색상: 은/맞춤형
질소 출구 압력: 0.1-0.6MPa 크기: 2000*1400*2550 2950KG
강조하다:

108Nm3/hr PSA Nitrogen Generator

,

Intelligent Alarm System Nitrogen Gas Making Machine

,

0.1-0.6 MPa Intelligent PSA Nitrogen Generator

Widely Used Nitrogen Gas Making Machine With Alarm System Intelligent PSA Nitrogen Generator
A PSA nitrogen generator (also known as a nitrogen gas making machine) is an advanced industrial gas system built on pressure swing adsorption nitrogen generation technology, utilizing high-performance carbon molecular sieve (CMS) to separate nitrogen from atmospheric air with exceptional selectivity. The intelligent PSA nitrogen generator integrates state-of-the-art PLC control and a multi-functional alarm system, enabling real-time monitoring of key parameters and automatic fault alerts—critical for ensuring continuous, reliable nitrogen supply.
Core Technical Parameters
NO Main Parts Function
1 Air compressor (screw type) Air is used as raw material to collect & compress air to 8 bar
2 Refrigerated dryer Remove water from compressed air, dew point could be -40℃. Power 220V/50Hz
3 Precision Filter A/T/C three-stage filter to remove oil, dust and impurities
4 Air buffer tank Store pure and dry air for subsequent adsorption and separation of oxygen and nitrogen as raw material storage
5 Adsorption tower Store pure and dry air for subsequent adsorption and separation of oxygen and nitrogen as raw material storage
6 Oxygen & nitrogen analyzer Real-time monitoring and analysis of oxygen & nitrogen purity, indicating that the equipment is working normally and alarming
7 Valves & pipelines Intelligent control valves realize automatic operation of equipment, PLC control, SUS304 pipelines
8 Oxygen & Nitrogen Buffer Tank Store oxygen & nitrogen with qualified purity, which can be directly piped or used for bottle filling
9 Pressure regulator Adjust and temperature the outlet pressure of oxygen & nitrogen (3-6Bar)
10 Booster Gas booster, pressurize the oxygen&nitrogen to the filling pressure, generally 150bar or 200bar
11 Filling Manifold Split high-pressure oxygen & nitrogen into each gas cylinder
Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure 0 Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure 1 Intelligent PSA Nitrogen Generator with 108Nm3/hr Output and 0.1-0.6 MPa Outlet Pressure 2
Core Functions of the Alarm System
Ensuring Safe & Stable Operation
The integrated alarm system is a defining feature of the intelligent PSA nitrogen generator, addressing critical pain points in industrial nitrogen supply by providing proactive risk management.
  • Purity Deviation Alarm: Triggers when nitrogen purity falls below the set threshold (e.g., 99.99% for electronics manufacturing), preventing substandard nitrogen from entering production processes and avoiding product defects.
  • Pressure Abnormal Alarm: Alerts operators to high or low system pressure, which could indicate air supply failures or pipeline leaks—protecting equipment from damage and ensuring consistent supply.
  • CMS Failure Reminder: Monitors adsorption-desorption cycle efficiency and sends alerts when CMS performance degrades, allowing timely replacement to maintain purity and efficiency.
  • Maintenance Alerts: Notifies users of filter replacement, oil change, and other routine maintenance tasks, extending equipment service life and reducing unplanned downtime.
  • Remote Notification: Optional IoT integration enables SMS/email alerts, allowing plant managers to respond to issues even off-site—critical for 24/7 industrial operations.
Wide-Ranging Industrial Applications
  • Chemical Industry: Used for inerting reactors, purging pipelines, and storing flammable chemicals—often configured as an Explosion-proof nitrogen generator with ATEX certification, where the alarm system detects pressure leaks to prevent fire or explosion risks.
  • Electronics Manufacturing: Delivers High-purity nitrogen generator output (99.9995%) for semiconductor production and PCB assembly, with the purity alarm ensuring no moisture or oxygen contamination.
  • Food Packaging: Maintains 99.9-99.99% purity for modified atmosphere packaging (MAP), with the alarm system preventing oxidation-related food spoilage and ensuring compliance with FDA standards.
  • Pharmaceutical Industry: Complies with GMP regulations, using the alarm system to monitor nitrogen purity and sterility, avoiding cross-contamination in drug production.
  • Marine Industry: Marine PSA Nitrogen Generator variants feature corrosion-resistant designs and marine-certified alarm systems, monitoring nitrogen supply for cargo tank inerting and equipment protection during voyages.
PSA vs. VPSA: Why Intelligent Systems Favor PSA Technology
While both PSA nitrogen generator and VPSA (Vacuum Pressure Swing Adsorption) technology produce high-purity nitrogen, PSA is better suited for intelligent integration with alarm systems.
  • Compact Design: PSA systems have smaller adsorption towers and faster cycle times (60-120 seconds), enabling easier integration of sensors and alarm modules without compromising space or performance.
  • Stable Pressure Output: PSA operates at medium-to-high pressure (0.6-1.6MPa), which is easier to monitor and regulate—critical for accurate pressure alarm functionality.
  • Lower Complexity: PSA systems require fewer moving parts (no vacuum pumps), reducing the number of potential failure points and simplifying alarm system calibration.
  • Fast Response Time: PSA's quick startup (5-10 minutes) and real-time purity adjustment align with the alarm system's need for rapid parameter monitoring, ensuring timely alerts for dynamic industrial processes.
In conclusion, the intelligent PSA nitrogen generator—a widely used nitrogen gas making machine with an integrated alarm system—represents the future of industrial nitrogen supply. By combining pressure swing adsorption for nitrogen generation technology with advanced intelligence and proactive safety monitoring, it delivers reliable, efficient, and safe nitrogen on demand. Whether for chemical processing, electronics manufacturing, or food packaging, this PSA nitrogen plant ensures operational continuity, reduces risks, and lowers costs—making it an indispensable asset for modern industrial enterprises.
