High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use

High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use
High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use

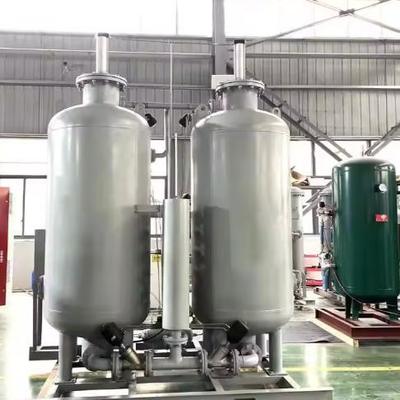

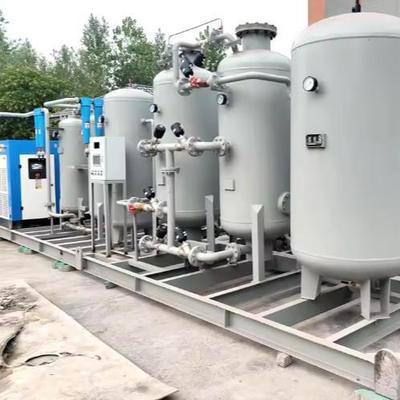

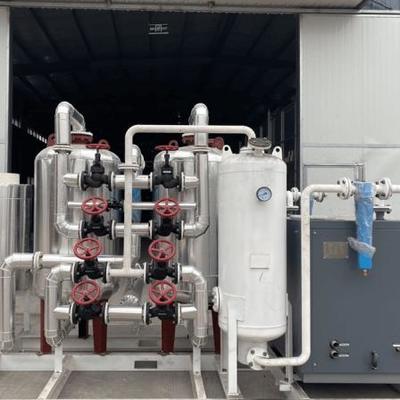

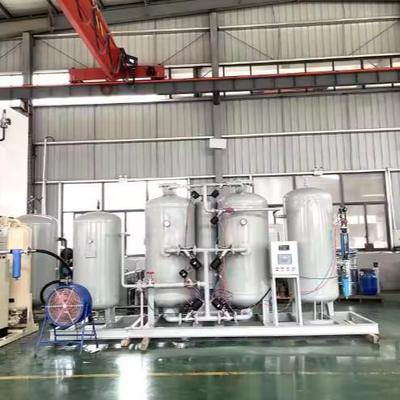

큰 이미지 :  High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use

제품 상세 정보:
원래 장소: 중국
브랜드 이름: GNEE
인증: SGS
결제 및 배송 조건:
최소 주문 수량: ≥1sets
가격: According to the product
포장 세부 사항: 바다 또는 토지 운송
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
접촉

High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use

설명
핵심 단어: VPSA 산소 발생기 테스트 압력: 0.8MPA-1.6MPA
지역은 덮였습니다: ~600m2 출력 압력: 10-15kap 또는 사용자의 요구 사항으로
작동 온도: 5-45 ° C 압력: 0.05Mpa 또는 조절 가능
유지 보수주기: ≥8000 시간 유량: 100-10000nm3/h
작업 원칙: 진공 압력 스윙 흡수 소비: 에너지 절약
강조하다:

0.8MPa-1.6MPa test pressure VPSA Oxygen Generator

,

5-45°C operating temperature Oxygen Production Equipment

,

≥8000 hours maintenance cycle Medical Oxygen Generator

High End VPSA Oxygen Generator for Hospital O2 Separation Plant
Advanced Oxygen Production Equipment
Our VPSA Oxygen Production Equipment utilizes advanced adsorption gas separation technology to efficiently produce 80%-94% oxygen, widely used in industries such as steel, glass, and paper manufacturing.
Technology Overview
The VPSA (Vacuum Pressure Swing Adsorption) oxygen production system transports low-pressure air through a blower, purifies it, and then enters the adsorption tower. Special molecular sieves adsorb nitrogen and moisture, enriching oxygen concentration.
Key Features
  • High efficiency and energy-saving operation
  • Fully automated control system
  • Compact footprint with easy start-stop functionality
  • Reliable performance for continuous operation
Technical Specifications
Oxygen Purity 90% 93% Dimensions & Weight
SCFH NM3/HR SCFH NM3/HR H (Inch) W (Inch) L (Inch) Weight (Lbs.)
731.92651.71863630720
1112.931002.62873637780
1644.311473.868742481728
2075.441854.869342481927
3118.192787.3210346482630
41410.893719.7410650534892
51613.5746112.1311052583851
72419.0364717.029754604592
123732.52110629.1012172727576
164143.15146838.6011674889370
210755.40188549.56137748810882
252166.28225559.291358411215238
291876.72261068.631279011215602
370697.45331587.181479011216699
4101107.83366896.4612112015619988
4473117.634002105.2312712015620791
5033132.334502118.3818412015621774
High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use 0 High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use 1 High Efficiency VPSA Oxygen Generator with 0.8MPa-1.6MPa Test Pressure and 5-45°C Operating Temperature for Medical and Industrial Use 2
Industrial Applications
  • Medical: Hospital pipeline filling with backup cylinder filling capability
  • Metallurgy: Annealing protection, agglomeration, nitrogenizing, and furnace processes
  • Chemical Industry: Material gas production, pipeline blowing, and gas protection
  • Electronics: Encapsulation, annealing, deoxidization, and product storage
Packaging Information
Standard packaging includes wooden crates (Size: 123L × 456W × 789D cm, Weight: 1.2T). For European exports, crates are fumigated. Alternative packaging options available for special requirements.
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com.
