Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency
Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

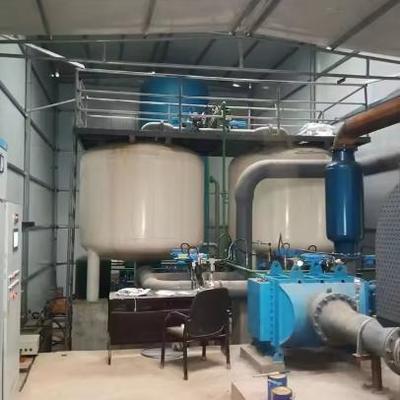

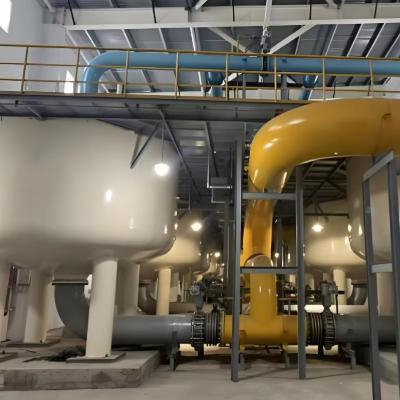

큰 이미지 :  Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

제품 상세 정보:
원래 장소: 중국
브랜드 이름: GNEE
인증: SGS
결제 및 배송 조건:
최소 주문 수량: ≥1sets
가격: According to the product
포장 세부 사항: 나무 상자 포장
지불 조건: MoneyGram, Western Union, T/T, D/P, D/A, L/C.
접촉

Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

설명
바닥 면적: 작은 생산 속도: 300-10000Nm3/h
내부 재료: 스테인레스 스틸 빈도: 50Hz/60Hz
전력 소비: 0.5~1.5kW/Nm3 지역은 덮였습니다: ~600m2
전압: 220V/380V/50-60Hz 기술: 진공 압력 스윙 흡착 (VPSA)
작업 압력: 10-15kap 또는 사용자의 요구 사항으로 소비: 에너지 절약
수명: +10 년 테스트 압력: 0.8MPA-1.6MPA
강조하다:

20 Nm³/h VPSA Oxygen Generator

,

10-15Kap Work Pressure Oxygen Generator

,

50Hz/60Hz Frequency Oxygen Production Line

Medical Grade 20 Nm³/h VPSA O₂ Plant Oxygen Production Line Remote Control Oxygen Generator Plant
Process Description
Vacuum Pressure Swing Adsorption oxygen production device operates at normal temperature conditions, utilizing molecular sieve to selectively adsorb nitrogen from air. By reducing adsorption tower pressure to desorb nitrogen from the molecular sieve, the system achieves continuous adsorption-desorption cycle operation, producing oxygen with purity ranging from 80% to 95% or higher.
Product Parameters
Flow Rate (Nm³/h) Purity (%) Size (cm) LWH Cylinders (6m³)/8h Cylinders (10m³)/8h
393 - 96120×120×18043
593 - 96120×120×20074
1093 - 96160×150×215138
2093 - 96180×170×2552616
3093 - 96190×170×2604024
5093 - 96210×200×2756740
10093 - 96550×155×32013380
15093 - 96600×180×350200120
20093 - 96660×200×370267160

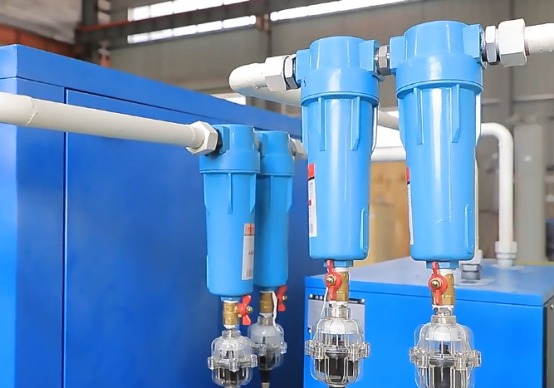

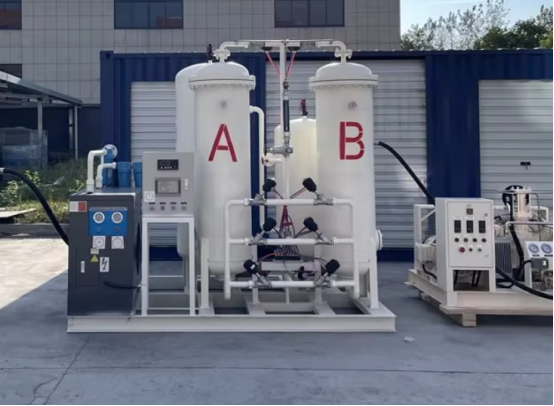

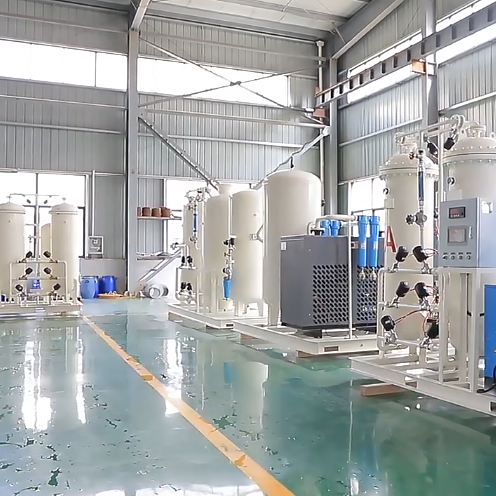

Medical Grade 20Nm³/h O2 Plant Oxygen Production Line Medical Grade 20Nm³/h O2 Plant Oxygen Production Line Medical Grade 20Nm³/h O2 Plant Oxygen Production Line
Operation Process
  1. Filtered air is blown into adsorption towers containing molecular sieve and activated alumina. Nitrogen molecules are absorbed while oxygen molecules and argon atoms pass through to the buffer tank.
  2. When one tower reaches saturation, the inlet valve closes, and oxygen-rich air washes the other tower. A vacuum pump removes nitrogen from the tower.
  3. After vacuuming, oxygen-rich air and buffer tank gas wash the molecular sieve to desorb nitrogen. The tower is then filled with product gas, ready for the next adsorption cycle.
Technical Characteristics
  • Full low pressure positive flow expansion process
  • Full low pressure back flow expansion process
  • Full low pressure process with booster turbo expander
Advantages
  • Simple installation and maintenance thanks to modular design
  • Fully automated system for reliable operation
  • Guaranteed availability of high-purity industrial gases
  • Product available in liquid phase for storage during maintenance
  • Low energy consumption
  • Short delivery time

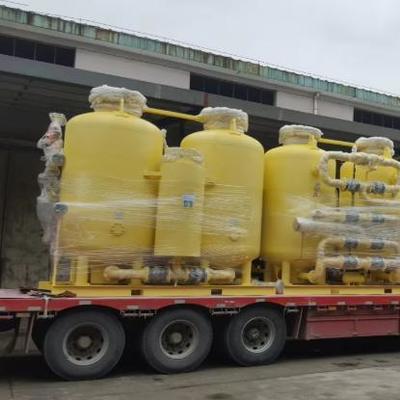

Packaging Details
Size123 (L) × 456 (W) × 789 (D)
Weight1.2 T
Packaging DetailsThe normal package is wooden box (Size: L×W×H). For European exports, the wooden box will be fumigated. If container space is limited, we use PE film or accommodate special customer requests.
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and other products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com.

태그:

VPSA 산소 플랜트 300 Nm3/hr,

산업용 VPSA 산소 발생기,

PLC 제어 산소 플랜트
