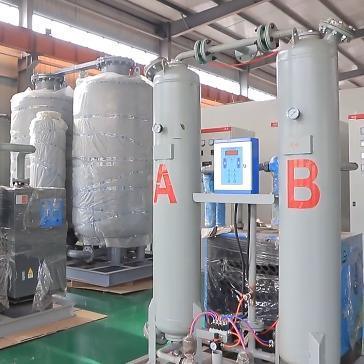

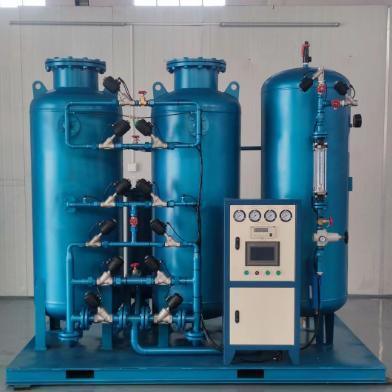

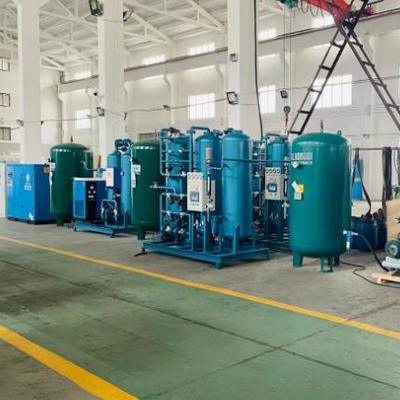

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

모든 제품

극저온 저장 탱크

(119)

연료유 저장 탱크

(53)

LPG 가스 축열조

(67)

외피 튜브 열교환 장치

(31)

코일형 튜브 열교환 장치

(20)

LPG 기체 봉입 주유소

(17)

판형 열교환기

(28)

극소 벌크 탱크

(47)

극저온 듀어 실린더

(44)

두배의 튜브 시트 열 교환기

(19)

PSA 질소 발생 장치

(46)

PSA 산소 발생기

(37)

VPSA 산소 발생기

(17)
제가 지금 온라인 채팅 해요

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use
VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

큰 이미지 :  VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

제품 상세 정보:
원래 장소: 중국
브랜드 이름: GNEE
인증: SGS
결제 및 배송 조건:
최소 주문 수량: ≥1sets
포장 세부 사항: 나무 상자 포장
배달 시간: 운송 시간 : Est. 17-24 일
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 매달 25 개
접촉

VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use

설명
산소 출력: ≤500Nm3/hr 지역은 덮였습니다: ~600m2
유량: 100-10000nm3/h 압력 등급: 고압
대기 이슬점: ≤℃60 0 상태: 새로운
구동 시간: 15-30 분 재료: 스테인레스 스틸
애플리케이션: 산소 생산 생산 속도: 50 ~ 5000nm3/h
청정: 93-95% 출력 압력: 10-15kap 또는 사용자의 요구 사항으로
강조하다:

Low Power Consumption VPSA Oxygen Generator

,

Low Noise VPSA Oxygen Plant

,

Long Service Life Cryogenic Oxygen Generator

VPSA Cryogenic Nitrogen Oxygen Plant - Medical & Industrial Use (Over 95% Purity)
Salient Features
  • Low Power Consumption: Precise equipment parameters with no overload or performance waste. Features high-energy oxygen-producing molecular sieves with low adsorption resistance and optimized adsorption tower design.
  • Low Noise: Large pipe and valve diameters with low gas flow rate. Incorporates combined sound insulation and absorption design.
  • Long Service Life: Components selected from first-line domestic and international brands. Features reliable top tower seal and includes regular maintenance follow-ups.
  • Intelligent Operation: One-click start/stop with unattended operation capability. Includes prompt alarm/emergency stop response and strict self-control logic design.
Product Parameters
Gas Production (Nm³/h) Air Consumption (Nm³/min) Imported Nominal Diameter DN (mm) Host Dimensions L*W*H (mm)
10.2DN15800 * 650 * 1720
20.4DN15950 * 950 * 1500
30.6DN151050 * 900 * 1865
51DN201450 * 900 * 1825
102DN321450 * 900 * 1825
153DN401800 * 950 * 1940
204DN401850 * 1025 * 2100
255DN502000 * 1050 * 2210
306DN502000 * 1050 * 2530
5010DN652200 * 1250 * 2720
6012DN652250 * 1300 * 2850
8016DN802350 * 1550 * 3060
10020DN1002500 * 1600 * 3330
12024DN1002600 * 1700 * 3670
15030DN1504700 * 1500 * 2980
18036DN2004700 * 1600 * 3370
20040DN2005000 * 1600 * 3330
24048DN2005200 * 1700 * 3670
VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 0 VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 1 VPSA Oxygen Generator with Low Power Consumption Low Noise and Long Service Life for Medical Industrial Use 2

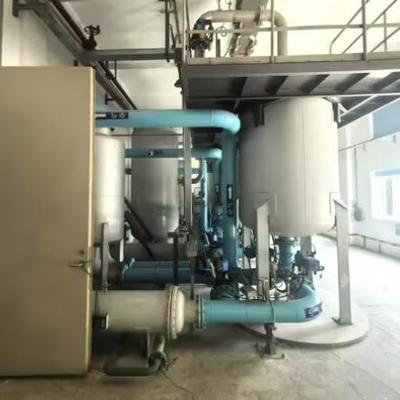

Installation Solution

The oxygen plant system includes:

  • Screw type air compressor
  • Oxygen booster
  • Air buffer tank
  • Refrigerated dryer
  • Filtration equipment
  • Oxygen buffer tank
  • Oxygen generator
  • Oxygen regulator
  • Filling manifold
Installation Steps
  1. Connect A&B from the air compressor flange to the refrigerated dryer flange using black DN50 high pressure tube
  2. Connect C&D from the oxygen generator to the oxygen booster using black DN50 high pressure tube
  3. Connect F from the oxygen booster to the filling manifold using black DN50 high pressure tube
  4. Connect the filling manifold to oxygen cylinders
Installation Notes
  • Ensure sealed connections between all equipment
  • Tighten all gaskets and screws properly
  • Prevent any air leakage
Packaging Details
Size123 (L) * 456 (W) * 789 (D)
Weight1.2 T
PackagingStandard wooden box packaging. For European exports, fumigated wooden boxes are used. Alternative packaging (PE film) available for tight container spaces or special customer requests.
We also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other products, please email info@gneeheatex.com. Our team will be pleased to assist you.
